HONDA CRF 1000L Pannier Racks AT (2016-2017) – Asymmetrical Exhaust Cutout

214.78 € incl. VAT

(3 customer reviews)

Prices include 21% VAT (Romania). The final VAT is calculated at checkout based on your delivery country. EU businesses with a valid VAT number can buy without VAT — just enter it at checkout.

Asymmetrical side racks for the Honda CRF 1000L Africa Twin (2016–2017), with an exhaust cutout for safe pannier clearance.

  • 17.3 mm steel tube, 2.3 mm wall, 4.6 kg, MIG + TIG welded
  • Bolted rear crossbar for extra rigidity
  • Bolt-on, mounting hardware included

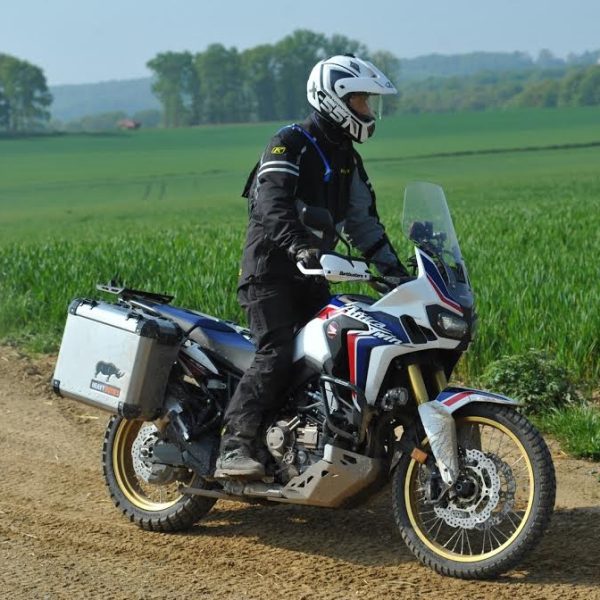

Made for the Heavy Duties Rhino aluminium panniers for the CRF 1000L (48/40 L, exhaust cutout). Includes left and right racks plus rear crossbar.

2 in stock

These Heavy Duties asymmetrical pannier racks carry hard or soft panniers on the Honda CRF 1000L Africa Twin (2016–2017), with an exhaust cutout that keeps luggage clear of the heat. A bolted rear crossbar links both sides and stiffens the whole system for loaded off-road riding.

Key features

  • Strong: 17.3 mm steel tube with a 2.3 mm wall

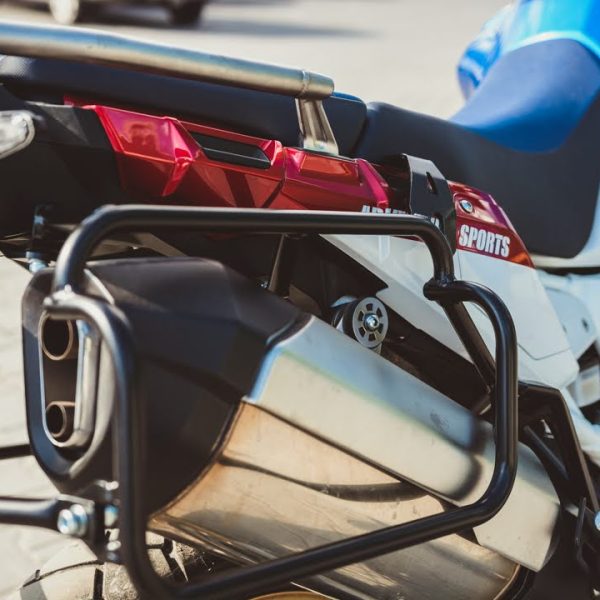

  • Exhaust clearance: asymmetrical layout with an integrated cutout keeps the pannier clear of the exhaust heat
  • Rigid: left and right racks joined by a bolted rear crossbar; the system also works as a partial rear subframe
  • Durable finish: MIG and TIG welded, sandblasted and electrostatically powder coated black
  • Bolt-on: no drilling, cutting or changes to the frame or rear footrests; mounting hardware included
  • Versatile: carries hard aluminium panniers or soft luggage

Fits

  • Honda CRF 1000L Africa Twin, 2016–2017

Technical specifications

Tube 17.3 mm steel, 2.3 mm wall
Design Asymmetrical, exhaust cutout
Weight 4.6 kg
Total width 48 cm (+6 cm exhaust gap)
Welding MIG + TIG
Finish Sandblasted, black electrostatic powder coat
Installation Bolt-on, hardware included
Made in Romania (EU)

In the box

  • Left and right side racks
  • Rear crossbar
  • Mounting hardware

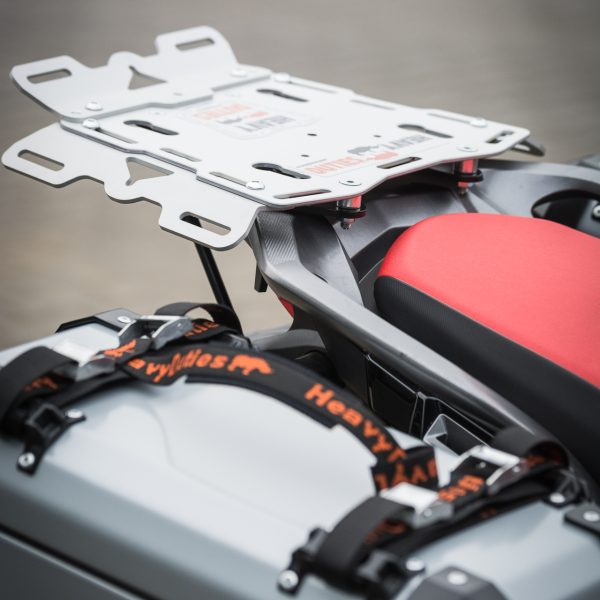

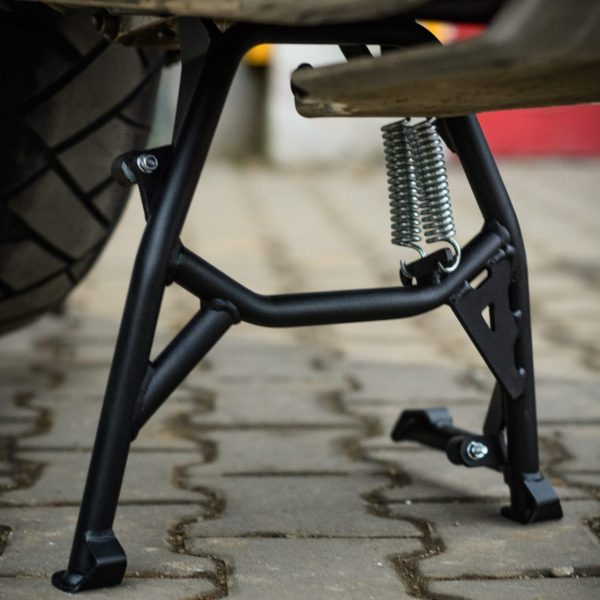

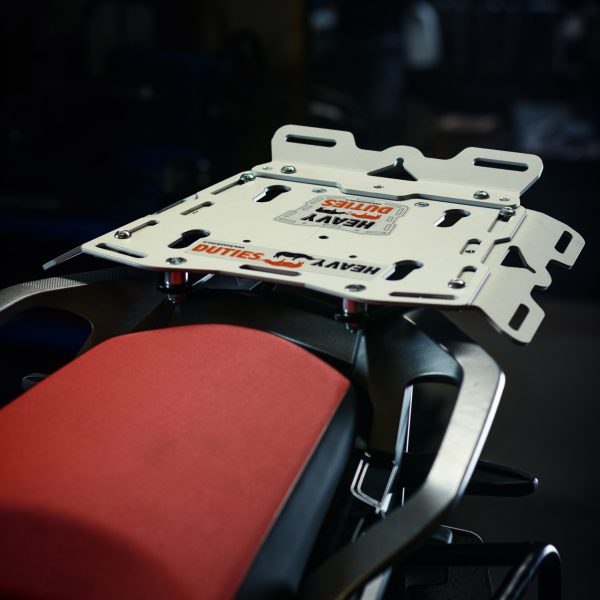

Made for the Heavy Duties Rhino aluminium panniers for the CRF 1000L (48/40 L, exhaust cutout). For soft bags, add the Soft Pannier Mount Duo/Quad, which works with all Heavy Duties pannier racks. Complete the setup with the CRF 1000L Triko Platform luggage rack and CRF 1000L AT/AS center stand.

Frequently asked questions

Which panniers fit these racks?

They are made for the Heavy Duties Rhino aluminium panniers for the CRF 1000L (48/40 L, exhaust cutout), and they also carry soft panniers.

Do I need to modify the bike?

No. Installation is bolt-on with the included hardware — no drilling, cutting or changes to the frame or rear footrests.

Why an asymmetrical rack?

The exhaust-side rack has a cutout, so the pannier on that side sits clear of the exhaust and its heat.

Is there a version for other model years or layouts?

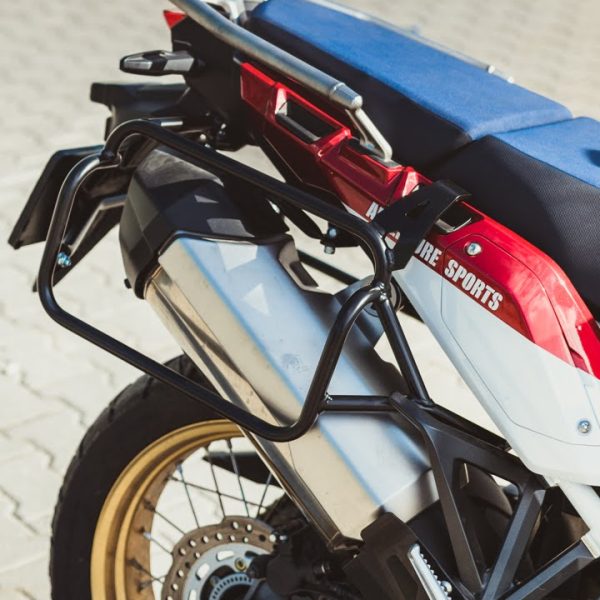

Yes — see the CRF 1000L racks for 2018+ and Adventure Sports.

Weight7 kg
Dimensions60 × 40 × 40 cm

3 reviews for HONDA CRF 1000L Pannier Racks AT (2016-2017) – Asymmetrical Exhaust Cutout

  1. Tobi (verified owner) –

    Der Anbau ist eigentlich problemlos. Eigentlich… 😅
    Ich habe leider angefangen auf einer Seite die Schrauben anzuziehen. Dadurch war alles so verspannt, dass es auf der anderen Seite nicht mehr gepasst hat. Naja, selbst Schuld.

    Kleines Manko: trotz Anleitung mit Bildern war mir zunächst nicht ganz klar, welche Schrauben ich wo nehmen soll. Auch ein Drehmoment wäre gut. Habe die Schrauben jetzt wahrscheinlich sogar etwas zu fest angezogen. Daher eine Bitte an das Team von Heavy Duties: Schrauben separat einpacken und kennzeichnen, wo diese eingebaut werden und ein Drehmoment mit angeben. 👍

    • andreiheavyduties (store manager) –

      Hi Tobi,

      Thank you for your feedback.
      We usually recommend inserting all the screws but without tightening them.
      After all the screws are in place, but still loose, you can attach the connecting bar, loose as the rest of the bolts.
      You can then start working each screw, with only a few threads at a time, until the rack will properly sit on it’s correct position.
      The recommended tightening torque is standard, 12Nm for the M6 and 24Nm for the M8 bolts.

      Best regards,
      Andrei

  2. Joaquim –

    Nice looking rack, better then most of the competition.
    The positive:
    – They look good
    – Easy to install. Torque should be 12Nm for M6-screws, and 24Nm for the M8.
    – Feels robust and protects the sides, even without bags.
    Negative:
    – Some parts goes under the seat, therefor you can’t adjust the original seat to the lowest settings. My solution to that was to saw/file a part of the plastic on the seat, to fit the lowest setting. Works, but shouldn’t be an issue.
    – Right side is to close to the exhaust pipe

    They came with the bike, but I’ve already attached some bags with my own pannier fixing system. Works!

  3. Szabó Gábor (verified owner) –

    I chose this after long research – I was not disappointed! The strength and choice of material are very good. This can really work as a crash bar. Even after installation, the seat is adjustable to the lowest position. The attached template is accurate and easy to use. Installation is not an easy task, Sunday DIY people can have trouble. What is a strong negative: the concept of the assembly guide is good, but it is horribly photographed and several steps are not always clear; it can be confusing where which screw goes. The pipes run too close on the exhaust side.
